Overview

The core idea behind plotjs is that since you can natively save a matplotlib plot as SVG, it's possible to manipulate that SVG from the browser.

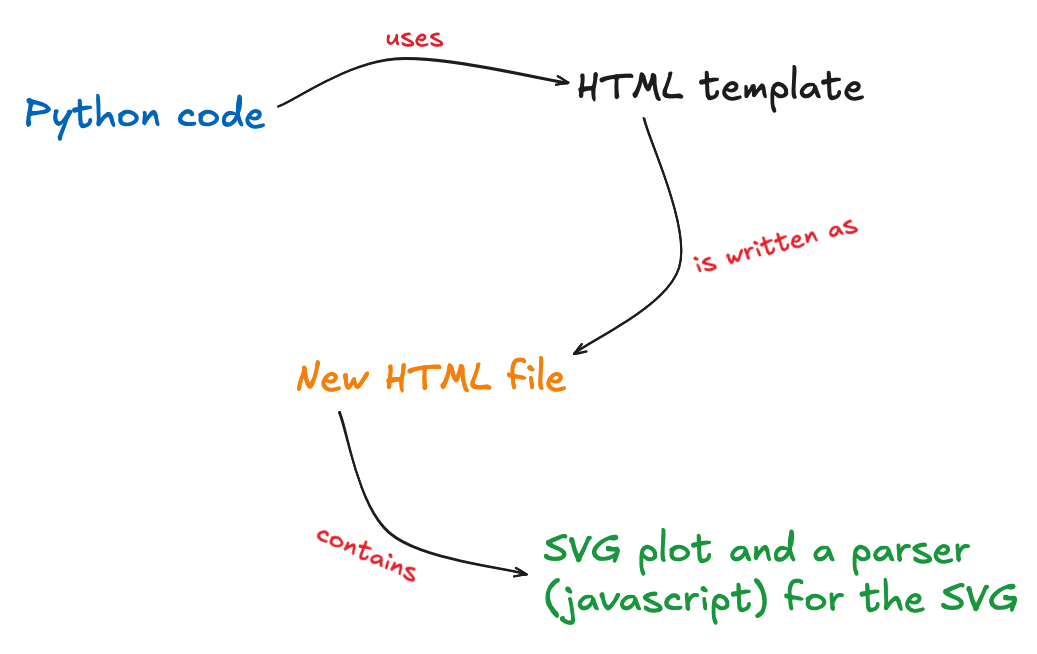

In practice, the saved HTML file from plotjs is just:

• the SVG output from matplotlib
• some CSS styling (default and from user)
• a parser for the SVG (in javascript) and javascript from user

Core issues

There are 2 things important things to solve at this point:

• communicate info from Python to JavaScript
• parse the SVG with JavaScript

The first point is important because the SVG file is not enough for us to parse it correctly. We need some info from the original matplotlib Figure. This is mainly solved using jinja2, often used in web development. This allows us to pass variables from Python to an HTML template (e.g., simple HTML file with placeholders that we'll fill). The core things we want to pass are:

• the SVG of the plot
• the JavaScript parser (kept in its own js file)
• additional CSS/JS from the user
• a dictionnary with custom info (named plot_data_json in the codebase)

plot_data_json is passed directly to JavaScript and is then parsed with JSON.parse(). This works because Python dictionnaries can be (assuming a few rules that we respect here) valid JSON and be considered as such.

Then we "just" have to parse the SVG and apply the effects the user want: hover, onclick effects, etc. You can learn more about how the SVG is parsed here.
